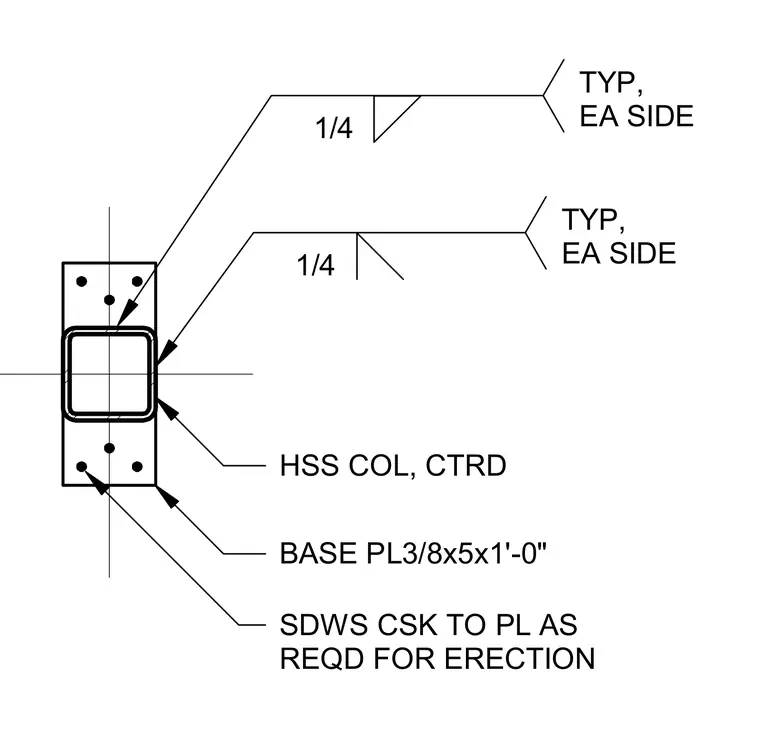

A hollow structural section column is centered on a 3/8-inch by 5-inch by 1-foot-0-inch steel base plate. The column is secured with countersunk screws as required for erection. A quarter-inch fillet weld is specified on each side of the connection.
SDWS CSK TO PL AS REQD FOR ERECTION BASE PL3/8x5x1'-0" 1/4 TYP, EA SIDE 1/4 TYP, EA SIDE HSS COL, CTRD
