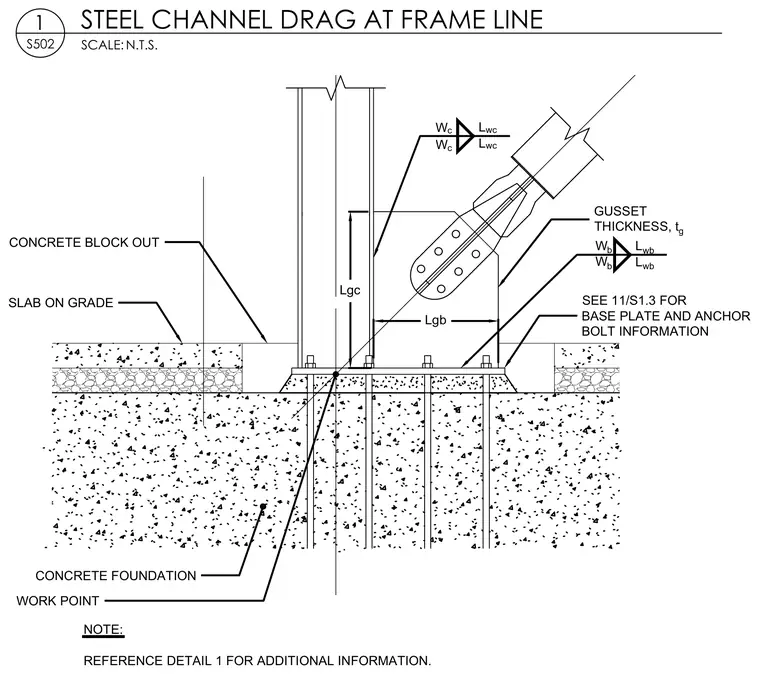

A bolted lug corebrace connects to a gusset plate welded to a vertical steel member anchored at a concrete foundation. A concrete block out is formed in the slab on grade around the base plate assembly. Base plate and anchor bolt information is referenced to another detail. The gusset plate thickness tg and weld sizes are specified by callouts.
SCALE: 1 STEEL CHANNEL DRAG AT FRAME LINE S502 N.T.S. Lgc Lgb NOTE: REFERENCE DETAIL 1 FOR ADDITIONAL INFORMATION. GUSSET THICKNESS, t g L wb L wb SEE 11/S1.3 FOR BASE PLATE AND ANCHOR BOLT INFORMATION L wc L wc CONCRETE BLOCK OUT SLAB ON GRADE WORK POINT CONCRETE FOUNDATION W b W b W c W c
