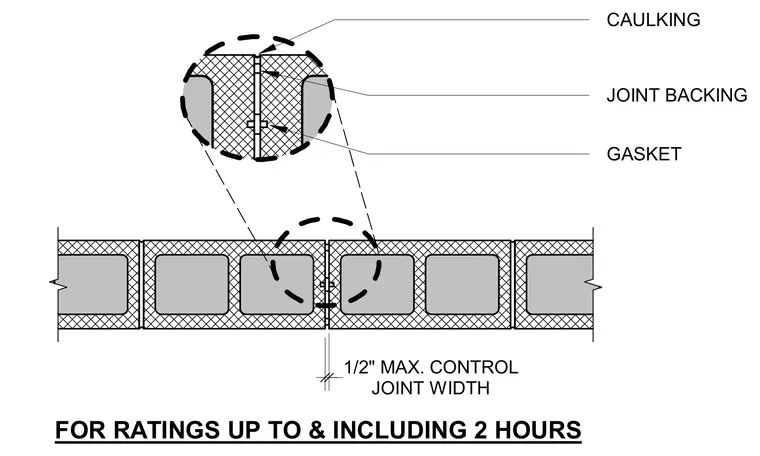

This assembly details a rated control joint with a maximum width of one-half inch, suitable for fire ratings up to and including two hours. The joint incorporates a central gasket and joint backing material, sealed continuously with caulking at the exterior face.
FOR RATINGS UP TO & INCLUDING 2 HOURS CAULKING JOINT BACKING GASKET JOINT WIDTH 1/2" MAX. CONTROL
