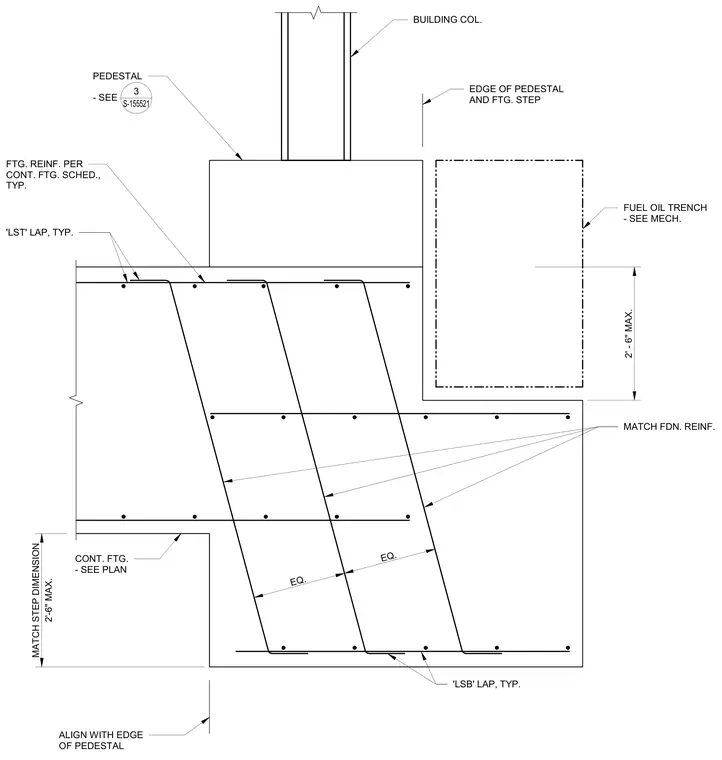

A height transition occurs in a continuous concrete footing beneath a building column pedestal. The footing incorporates top and bottom reinforcing steel with specified lap splices and diagonal dowel bars maintaining continuous reinforcement across the step. A fuel oil trench is positioned adjacent to the pedestal with alignment dimensions noted. Foundation reinforcement matches the continuous footing schedule.
BUILDING COL. EDGE OF PEDESTAL AND FTG. STEP FUEL OIL TRENCH - SEE MECH. MATCH FDN. REINF. PEDESTAL - SEE FTG. REINF. PER CONT. FTG. SCHED., TYP. 'LST' LAP, TYP. CONT. FTG. - SEE PLAN ALIGN WITH EDGE OF PEDESTAL 'LSB' LAP, TYP. 2'-6" MAX. MATCH STEP DIMENSION EQ. EQ. 2' - 6" MAX. 3 S-155521
