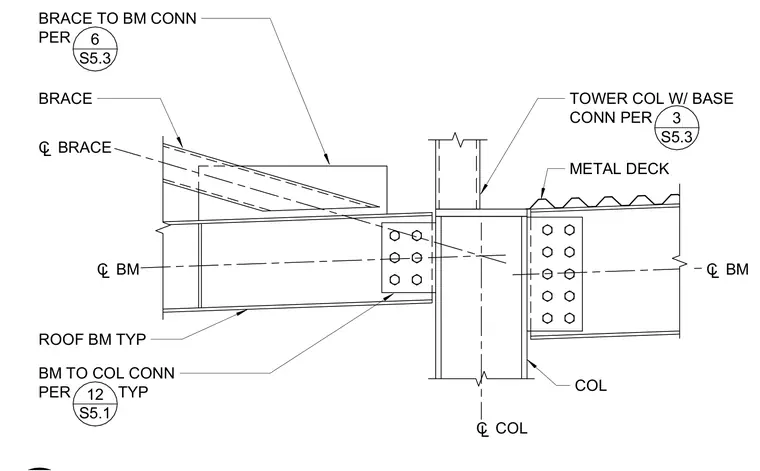

A structural steel collector beam and diagonal brace frame into a column with a bolted beam-to-column connection and a metal deck roof system. The diagonal brace connects to the beam per detail 6 on sheet S5.3, while the typical roof beam connects to the column per detail 12 on sheet S5.1. The tower column is anchored with a base connection per detail 3 on sheet S5.3. All framing members align along designated centerlines for proper load transfer across the roof structure.
¢ BM ¢ COL ¢ BM ¢ BRACE BRACE TO BM CONN PER 6 S5.3 BM TO COL CONN PER TYP 12 S5.1 TOWER COL W/ BASE CONN PER 3 S5.3 METAL DECK ROOF BM TYP BRACE COL
