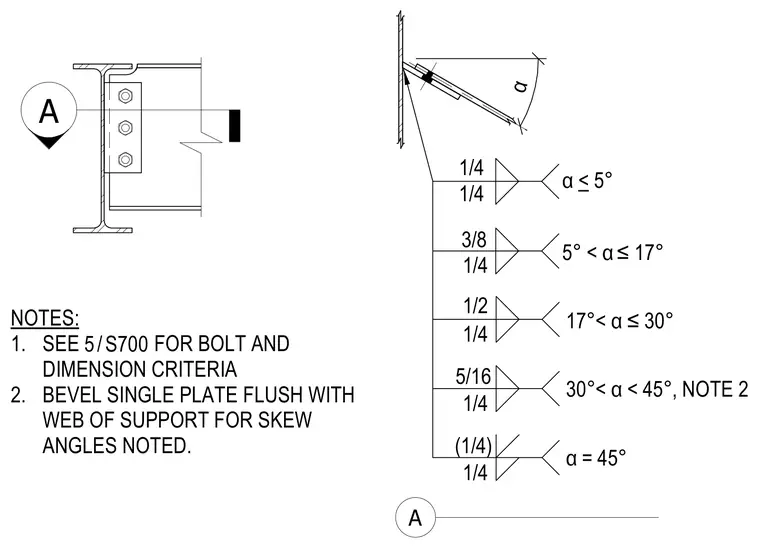

A structural steel single plate shear tab connection accommodates skewed beam-to-column or beam-to-beam framing conditions with varying skew angles alpha. The connection utilizes a bolted web plate welded to the supporting member using specific fillet weld sizes keyed to the angle of skew ranging from five to forty-five degrees. For skew angles between thirty and forty-five degrees, the single plate is beveled flush with the web of the support. Fillet welds range from one-quarter inch up to one-half inch depending on the specific angle bracket criteria shown.
1/4 1/4 1/4 3/8 5° < α ≤17° 1/2 1/4 α 17°< α ≤30° α < 5° 5/16 1/4 30°< α < 45°, NOTE 2 A A NOTES: 1. SEE FOR BOLT AND DIMENSION CRITERIA 2. BEVEL SINGLE PLATE FLUSH WITH WEB OF SUPPORT FOR SKEW ANGLES NOTED. (1/4) 1/4 α = 45° / 5 S700 5 S700
