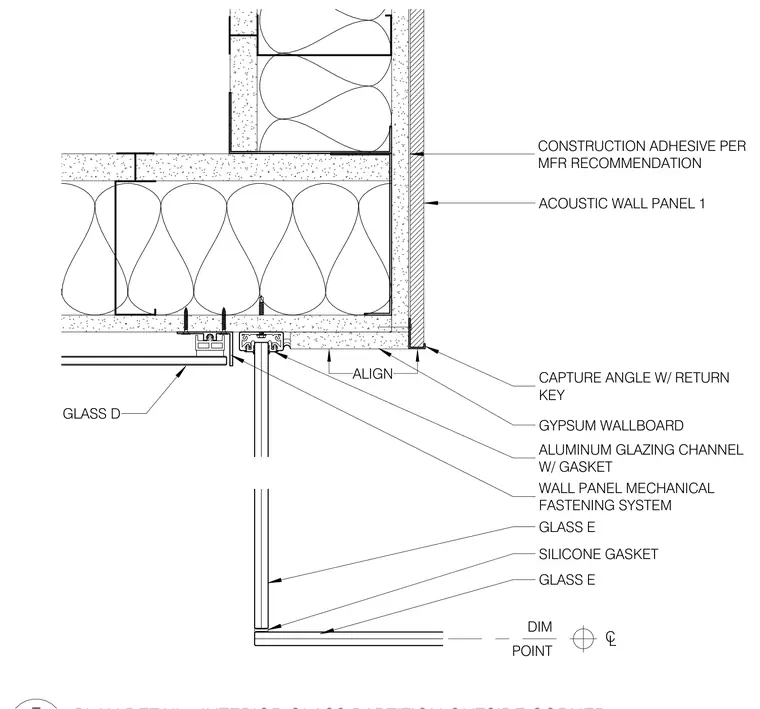

An interior glass partition outside corner details the junction between framed gypsum wallboard partitions and glazed panels. The wall corner features a capture angle with a return key, adhered acoustic wall panels, and a mechanical fastening system secured to the gypsum wallboard. The glass assembly integrates aluminum glazing channels with gaskets and silicone gaskets aligning the glass panels. Construction adhesive applied per manufacturer recommendations secures the acoustic wall panels at the outside corner.
ALIGN GLASS E SILICONE GASKET GLASS E CL DIM POINT CONSTRUCTION ADHESIVE PER MFR RECOMMENDATION ACOUSTIC WALL PANEL 1 CAPTURE ANGLE W/ RETURN KEY GLASS D GYPSUM WALLBOARD WALL PANEL MECHANICAL FASTENING SYSTEM ALUMINUM GLAZING CHANNEL W/ GASKET
