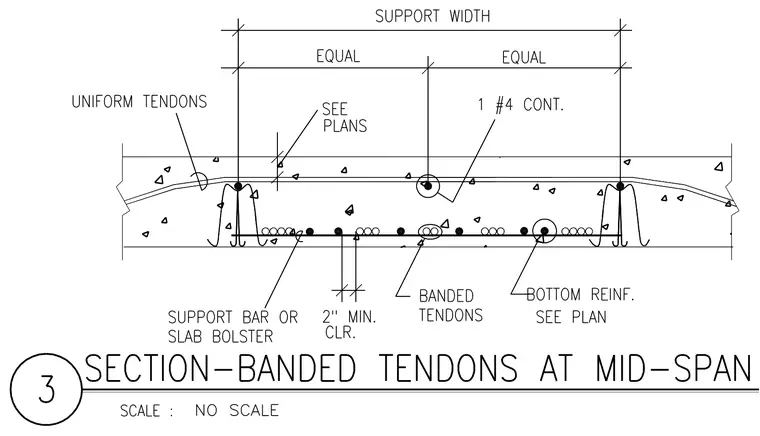

A post-tensioned concrete slab cross-section at mid-span incorporates banded tendons and uniform tendons supported by chairs or slab bolsters. A continuous number four rebar runs near the top reinforcement layer over the support width, centered within equal spacing dimensions. Banded tendons and bottom reinforcement are positioned per the structural plans maintaining a minimum two-inch clearance. Support width dimensions and tendon profiles are clearly indicated for installation coordination.
