Hollow Structural Section Beam to Column Connection with Tolerance Gaps

Materials

Connections

About this detail

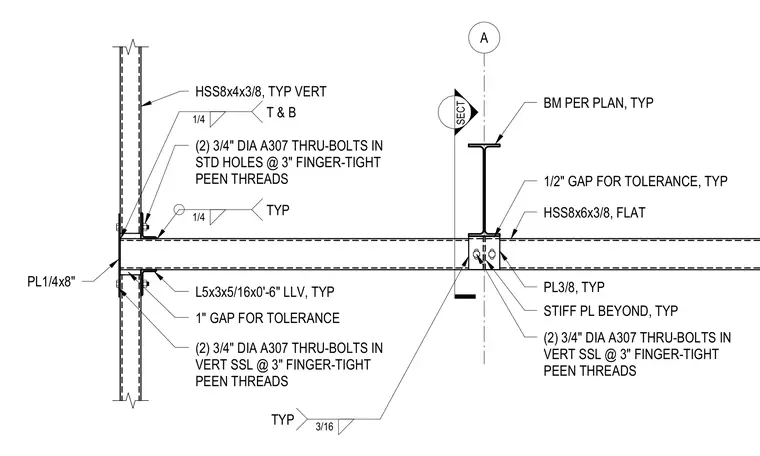

An HSS8x6x3/8 horizontal beam connects back to an HSS8x4x3/8 vertical column with a PL1/4x8 inch plate and top and bottom L5x3x5/16 by zero-foot-six-inch long leg vertical angles. Two three-quarter-inch diameter A307 thru-bolts in standard holes at three-inch spacing are installed finger-tight with peened threads at the top and bottom angles, accompanied by one-quarter-inch fillet welds. A one-inch gap is provided for tolerance between the framing members. Further along the span, a beam per plan bears on an HSS8x6x3/8 flat section with a one-half-inch gap for tolerance, secured by a PL3/8 plate, a flat stiffener plate beyond, and two three-quarter-inch diameter A307 thru-bolts in vertical slotted holes at three-inch spacing installed finger-tight with peened threads.
