Structural · S-TTM76

Single Tube

Materials

Steel Timber / Wood

Elements

Columns Beams

Connections

HSS Connection Bolted Connection

About this detail

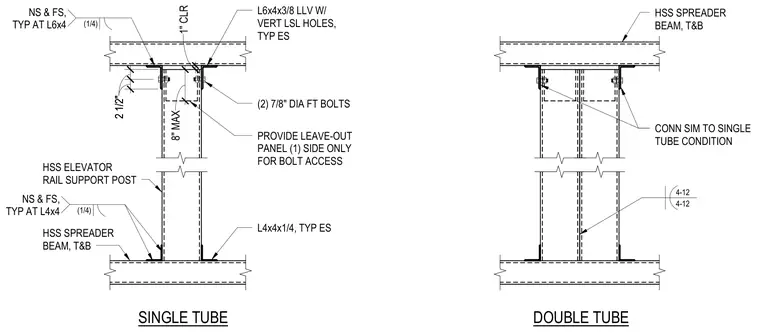

An elevator rail support post consists of a hollow structural section vertical member tied to top and bottom hollow structural section spreader beams using structural angles. The top connection utilizes L6x4x3/8 angles with vertical long-short-long slotted holes, two 7/8 inch diameter through-bolts, and a one-inch clearance, requiring a leave-out panel on one side only for bolt access. The bottom connection uses L4x4x1/4 angles tied to the spreader beams. Fillet welds of 1/4 inch size are applied near side and far side typically at both angle connections. A double tube configuration duplicates the framing scheme with similar connections.
