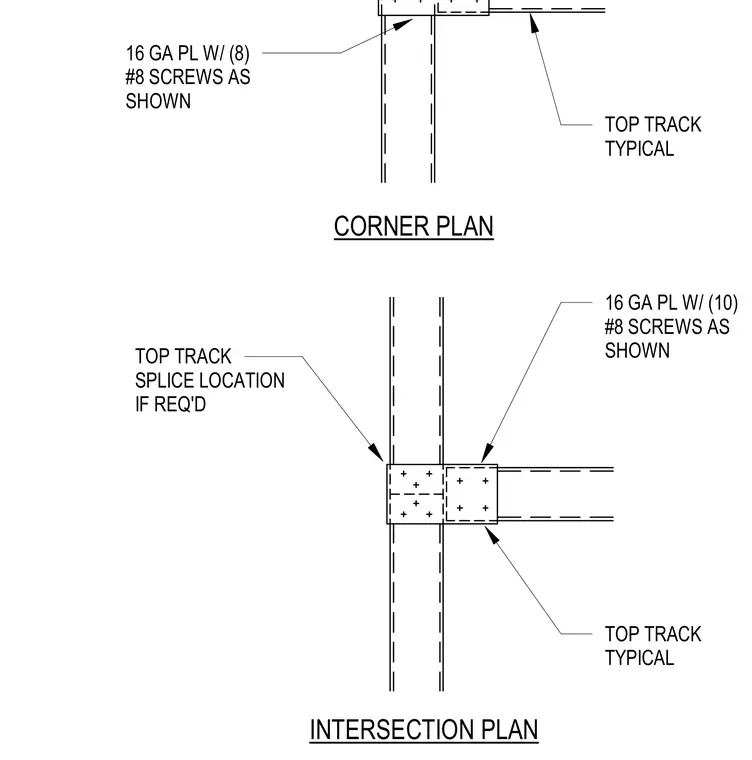

Cold-formed metal framing corner and intersection plans detailing top track connections. The corner plan connects top tracks using a sixteen-gauge plate fastened with eight number eight screws. The intersection plan details a top track splice location with a sixteen-gauge plate fastened with ten number eight screws as shown.
CORNER PLAN INTERSECTION PLAN TOP TRACK TYPICAL 16 GA PL W/ (8) #8 SCREWS AS SHOWN 16 GA PL W/ (10) #8 SCREWS AS SHOWN TOP TRACK TYPICAL TOP TRACK SPLICE LOCATION IF REQ'D
