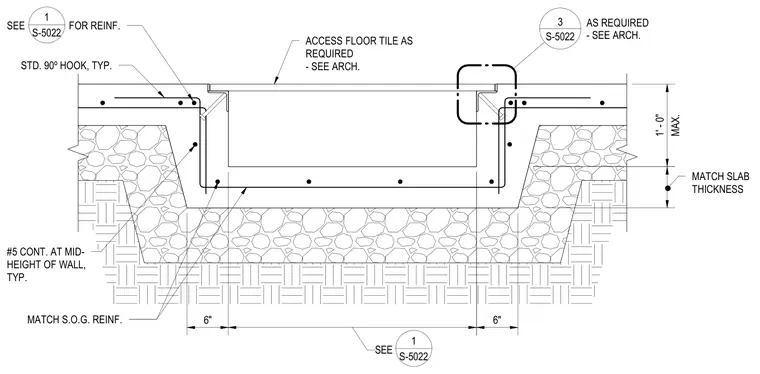

A cast-in floor box block-out occurs within a slab-on-grade. A recessed concrete trough matches the slab thickness with a maximum depth of 1'-0", reinforced with continuous number 5 rebars at the mid-height of the wall and standard ninety-degree hooks typically. Slab-on-grade reinforcement continues through the assembly, matched to the main slab specifications. Access floor tiles are provided as required per architectural drawings, supported by edge angles and embedded anchors.
1 S-5022 S-5022 3 AS REQUIRED - SEE ARCH. ACCESS FLOOR TILE AS REQUIRED - SEE ARCH. STD. 90º HOOK, TYP. #5 CONT. AT MID- HEIGHT OF WALL, TYP. MATCH S.O.G. REINF. MAX. 1' - 0" 6" SEE 6" MATCH SLAB THICKNESS SEE FOR REINF. 1 S-5022
