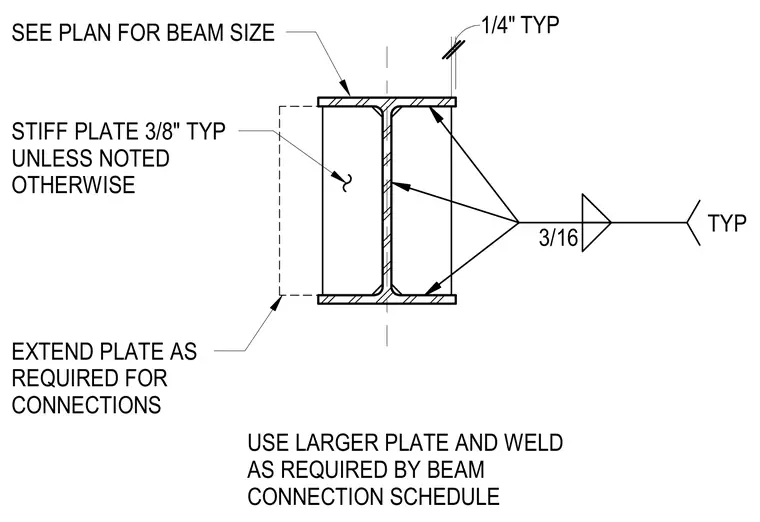

This structural detail specifies a steel beam with a three-eighths-inch stiffener plate welded in place typically unless noted otherwise. Three-sixteenth-inch and one-quarter-inch fillet welds secure the plates to the beam web and flanges. The plate size and weld dimensions scale upward per the structural beam connection schedule when required by design loads.
USE LARGER PLATE AND WELD AS REQUIRED BY BEAM CONNECTION SCHEDULE EXTEND PLATE AS REQUIRED FOR CONNECTIONS STIFF PLATE 3/8" TYP UNLESS NOTED OTHERWISE SEE PLAN FOR BEAM SIZE 3/16 TYP 1/4" TYP
