Two-by-six wood studs spaced at sixteen inches on center with blocking at all plywood edges bear on a sill plate secured to a concrete slab on grade. Five-eighths-inch diameter threaded rods spaced at sixteen inches on center are anchored into the concrete with Hilti HIT-RE 500-V3 epoxy requiring special inspection and a six-inch minimum penetration. The concrete foundation stem wall features two continuous number five rebar and number four rebar at twenty-four inches on center, supporting a slab on grade sized per plan.

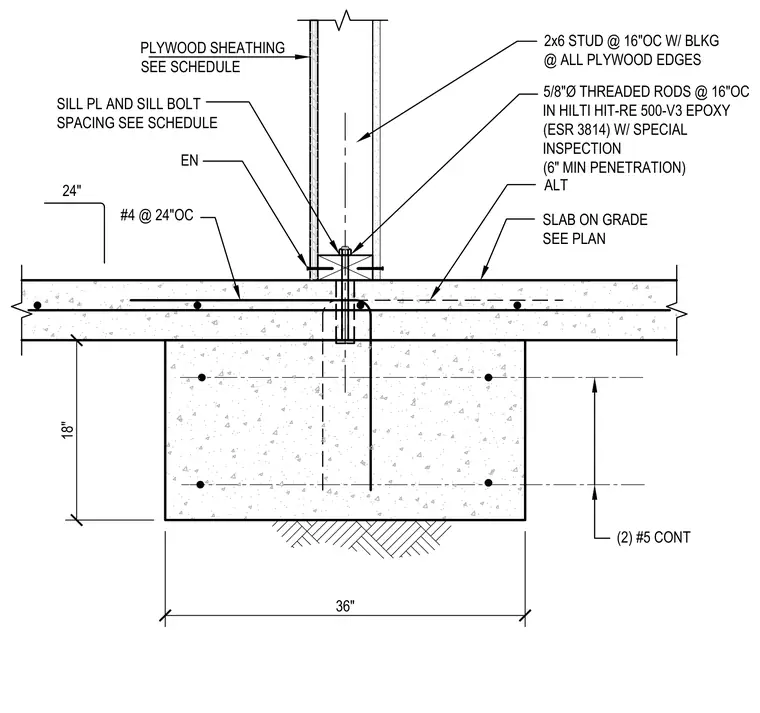

SLAB ON GRADE SEE PLAN 2x6 STUD @ 16"OC W/ BLKG @ ALL PLYWOOD EDGES 5/8"Ø THREADED RODS @ 16"OC IN HILTI HIT-RE 500-V3 EPOXY (ESR 3814) W/ SPECIAL INSPECTION (6" MIN PENETRATION) (2) #5 CONT #4 @ 24"OC PLYWOOD SHEATHING SEE SCHEDULE 24" ALT EN 18" 36" SILL PL AND SILL BOLT SPACING SEE SCHEDULE
