About this detail

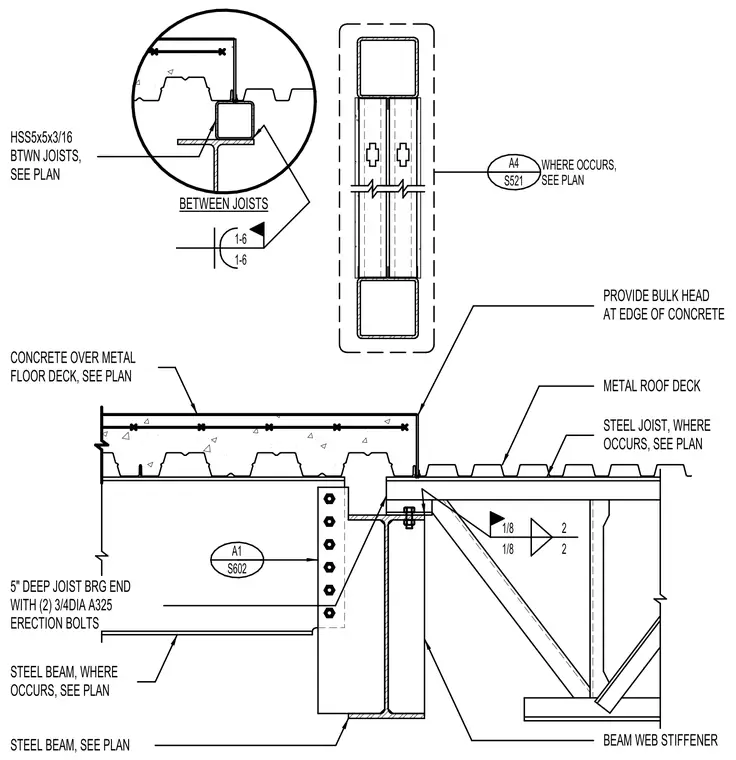

A five-inch deep steel joist bearing end is secured to a supporting steel beam with two three-quarter inch diameter ASTM A325 erection bolts, featuring a hollow structural section measuring five by five by three-sixteenths inches between joists as sized per plan. A beam web stiffener is provided at the connection point on the steel beam. Concrete over metal floor deck meets a metal roof deck transition where a bulkhead is provided at the edge of the concrete.
