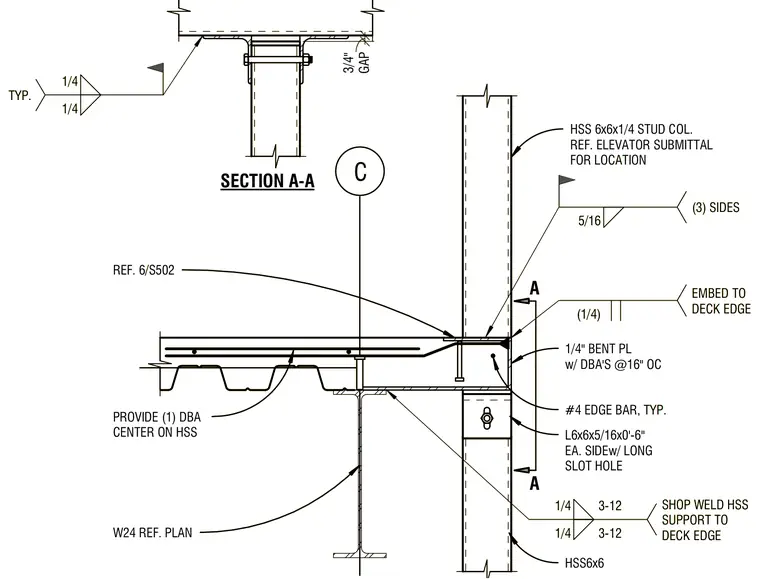

Connection of an HSS 6x6x1/4 stud column and guide rail assembly at a metal deck edge supported by a W24 beam. The deck edge incorporates a 1/4 inch bent plate with headed stud anchors at 16 inches on center and a typical number 4 edge bar. The HSS support is shop welded to the deck edge with a 1/4 inch fillet weld spaced at 3 to 12 inches. An L6x6x5/16 by 6-inch angle with long slot holes is provided on each side of the connection. Additional anchorage includes a headed stud anchor centered on the HSS connected to the deck.
C REF. 6/S502 PROVIDE (1) DBA CENTER ON HSS W24 REF. PLAN 5/16 (3) SIDES (1/4) EMBED TO DECK EDGE 1/4 3-12 1/4 3-12 SHOP WELD HSS SUPPORT TO DECK EDGE #4 EDGE BAR, TYP. HSS 6x6x1/4 STUD COL. REF. ELEVATOR SUBMITTAL FOR LOCATION 1/4" BENT PL w/ DBA'S @16" OC L6x6x5/16x0'-6" EA. SIDEw/ LONG SLOT HOLE HSS6x6 1/4 1/4 TYP. GAP 3/4" A SECTION A-A A C REF. 6/S502 PROVIDE (1) DBA CENTER ON HSS W24 REF. PLAN 5/16 (3) SIDES (1/4) EMBED TO DECK EDGE 1/4 3-12 1/4 3-12 SHOP WELD HSS SUPPORT TO DECK EDGE #4 EDGE BAR, TYP. HSS 6x6x1/4 STUD COL. REF. ELEVATOR SUBMITTAL FOR LOCATION 1/4" BENT PL w/ DBA'S @16" OC L6x6x5/16x0'-6" EA. SIDEw/ LONG SLOT HOLE HSS6x6 1/4 1/4 TYP. GAP 3/4" A SECTION A-A A
