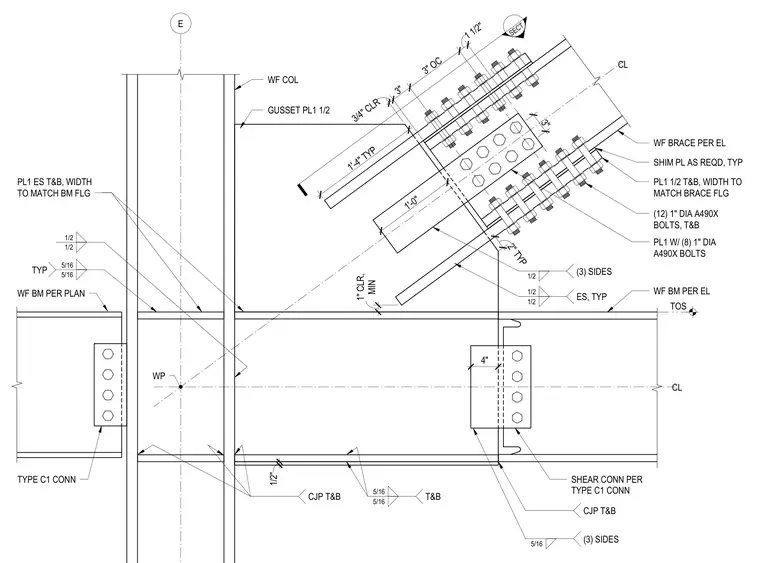

This structural steel detail shows a wide flange column and beam connection with a diagonal wide flange brace framed into a heavy gusset plate. The gusset plate is one-half inch thick and welded to the wide flange column with complete joint penetration welds at the top and bottom flanges. A wide flange beam frames into the column with a type C1 shear connection and complete joint penetration welds at the flanges. The diagonal wide flange brace connects to the gusset plate using one-half inch thick top and bottom plates secured by twelve one-inch diameter A490X bolts. Additional stiffener plates and shim plates are provided as required with typical fillet welds on three sides. A clearance of one inch minimum is maintained at the brace intersection.
SECT E CL CL WP MIN 1" CLR, TOS 1 1/2" 3" OC 3" 3/4" CLR 3" 2" TYP WF BM PER EL SHEAR CONN PER TYPE C1 CONN GUSSET PL1 1/2 (12) 1" DIA A490X BOLTS, T&B 1'-0" 1'-4" TYP PL1 W/ (8) 1" DIA A490X BOLTS WF BRACE PER EL PL1 1/2 T&B, WIDTH TO MATCH BRACE FLG WF BM PER PLAN WF COL TYPE C1 CONN PL1 ES T&B, WIDTH TO MATCH BM FLG TYP 5/16 5/16 CJP T&B 1/2 1/2 T&B 5/16 5/16 CJP T&B 1/2" (3) SIDES 5/16 ES, TYP 1/2 1/2 (3) SIDES 1/2 SHIM PL AS REQD, TYP 4"
