Structural · S-TSC9D

Curtain Wall Attachment and Exterior Wall Connection at Steel Deck

Materials

Concrete Steel Metal (misc.)

Elements

Beams Walls Curtain Walls Ceilings Floors / Slabs Decks Arches Bracing Connections / Plates

Connections

Beam-to-Beam Bracing Connection Welded Connection Deck Attachment Expansion / Slip Connection

About this detail

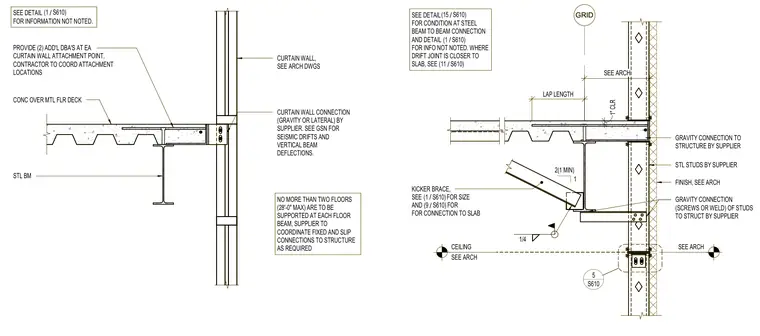

Exterior wall and curtain wall connections to a concrete fill over metal floor deck supported by a steel beam. Two additional direct-attached anchors are provided at each curtain wall attachment point, with gravity or lateral curtain wall connections coordinated by the supplier. A kicker brace connects back to the floor slab structure using a one-quarter inch fillet weld, and steel studs attach to the structure via gravity screw or weld connections. Floor framing limits support to a maximum of two floors or twenty-eight feet per floor beam, with suppliers coordinating fixed and slip connections as required.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
