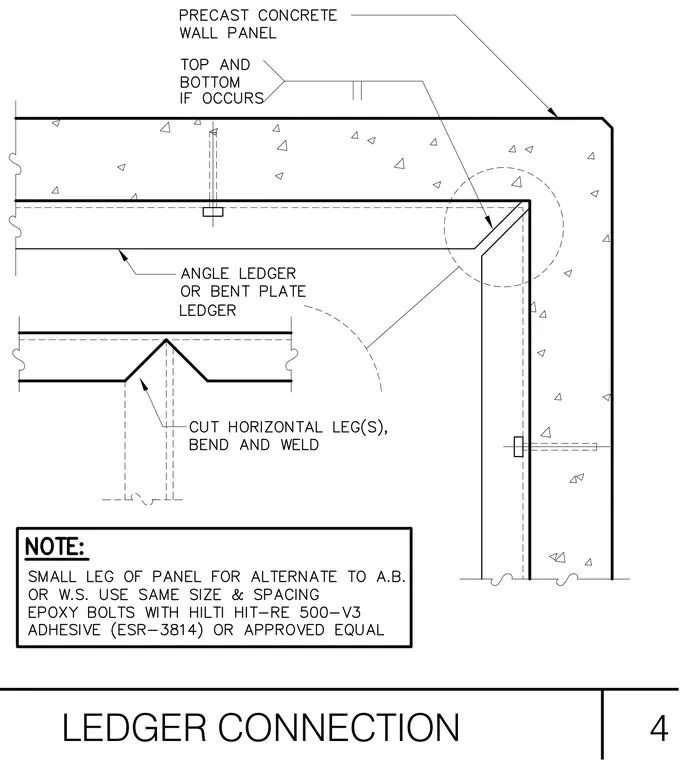

An angle ledger or bent plate ledger spans along precast concrete wall panels and is secured with epoxy bolts using Hilti HIT-RE 500-V3 adhesive or an approved equal. At corners, the horizontal leg of the angle ledger is cut, bent, and welded. For alternate anchor bolts or welded studs, the same size and spacing are maintained.
