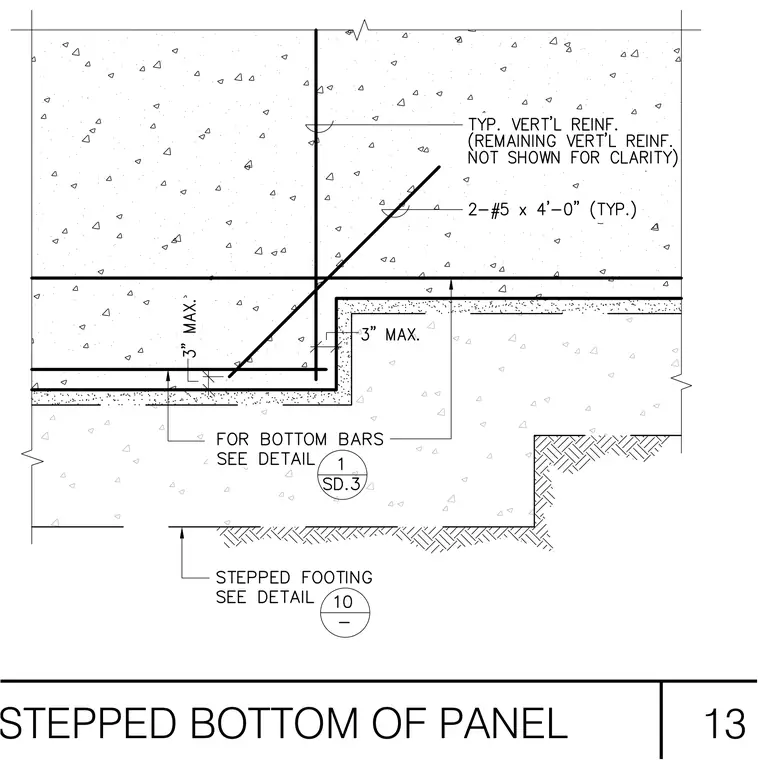

A concrete wall panel features a stepped bottom profile bearing over a stepped footing. Typical vertical reinforcement and diagonal corner bars consisting of two number 5 bars at 4 feet 0 inches length are placed at the step transition. A maximum 3-inch dimension governs the step geometry and bar placement. Bottom bars are referenced to detail 1 on sheet SD.3, and the stepped footing is referenced to detail 10.
