Structural · S-TS4PP

Grouted Anchors Embed

Materials

Concrete Reinforced Concrete Masonry / CMU

Elements

Anchors / Embeds Reinforcing

Connections

Embed Plate Timber / Mass-Timber Connection

About this detail

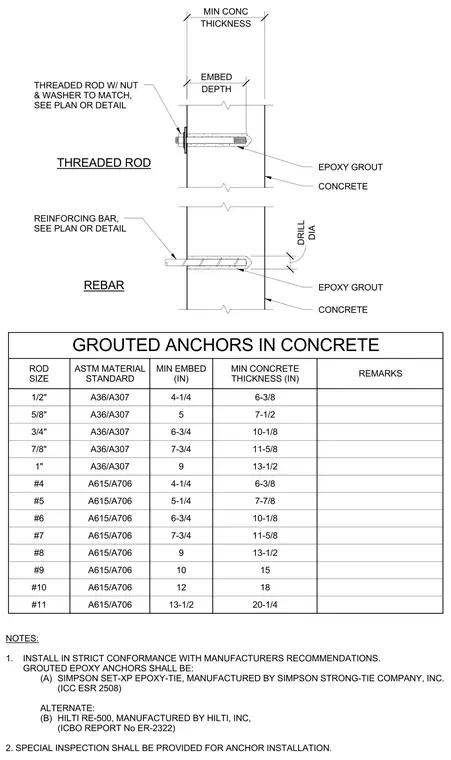

Grouted epoxy anchors installed in concrete comprise both threaded rod and reinforcing bar configurations with corresponding embedment depths and minimum concrete thicknesses. The threaded rod assembly includes a threaded rod with a matching nut and washer, embedded into the concrete with epoxy grout. The rebar assembly details a reinforcing bar set into a drilled hole with epoxy grout. A comprehensive schedule correlates rod sizes and rebar sizes from number four to number eleven with ASTM material standards such as A36, A307, A615, and A706, alongside specific minimum embedment values and concrete thicknesses. Installation notes require strict compliance with manufacturer recommendations, specifying Simpson Set-XP Epoxy-Tie or Hilti RE-500 epoxy grouts, and mandate special inspection for all anchor installations.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
