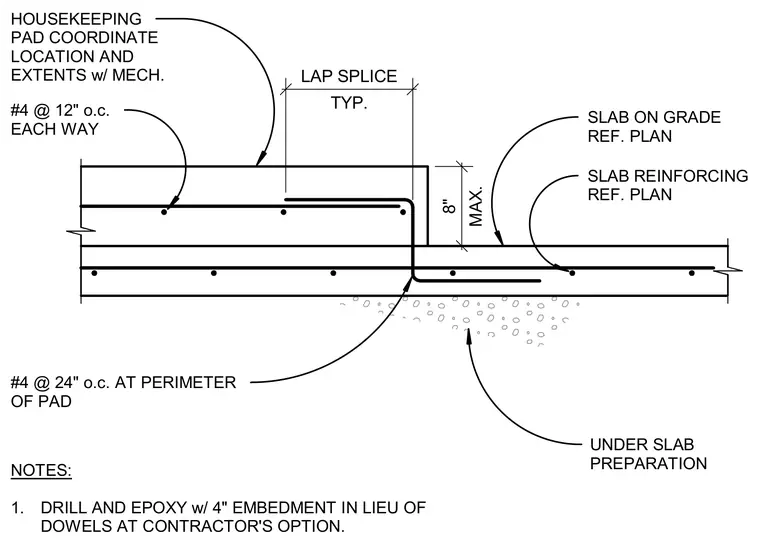

A concrete housekeeping pad sits atop a slab on grade with a maximum height of 8 inches, featuring a coordinated location and extents with mechanical equipment. The slab reinforcing consists of number 4 bars at 12 inches on center each way, transitioning to number 4 bars at 24 inches on center at the perimeter of the pad. A typical lap splice connects the reinforcement, with dowels extending into the slab preparation. Contractors have the option to drill and epoxy dowels with 4-inch embedment in lieu of standard bent dowels.
SLAB REINFORCING REF. PLAN UNDER SLAB PREPARATION MAX. 8" SLAB ON GRADE REF. PLAN #4 @ 12" o.c. EACH WAY HOUSEKEEPING PAD COORDINATE LOCATION AND EXTENTS w/ MECH. #4 @ 24" o.c. AT PERIMETER OF PAD NOTES: 1. DRILL AND EPOXY w/ 4" EMBEDMENT IN LIEU OF DOWELS AT CONTRACTOR'S OPTION. TYP. LAP SPLICE
