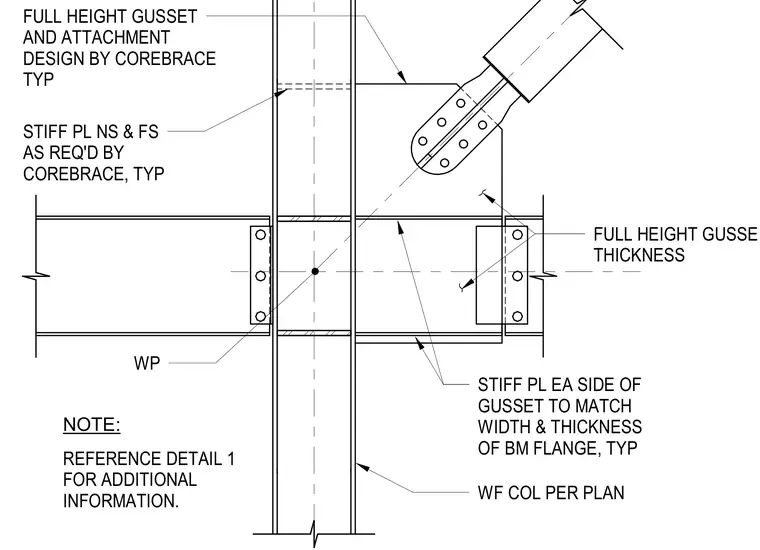

A buckling-restrained brace connects to a wide-flange steel column at the strong axis using a full-height gusset plate and a bolted lug connection. Stiffener plates are welded to each side of the gusset plate matching the width and thickness of the beam flange. Additional stiffener plates are provided on the near side and far side of the column web as required by the manufacturer. Beams frame into the column flanges with shear tabs and bolts. Full-height gusset thickness and attachment design are provided by the corebrace manufacturer.
NOTE: REFERENCE DETAIL 1 FOR ADDITIONAL INFORMATION. WP STIFF PL NS & FS AS REQ'D BY COREBRACE, TYP FULL HEIGHT GUSSET THICKNESS FULL HEIGHT GUSSET AND ATTACHMENT DESIGN BY COREBRACE TYP STIFF PL EA SIDE OF GUSSET TO MATCH WIDTH & THICKNESS OF BM FLANGE, TYP WF COL PER PLAN
