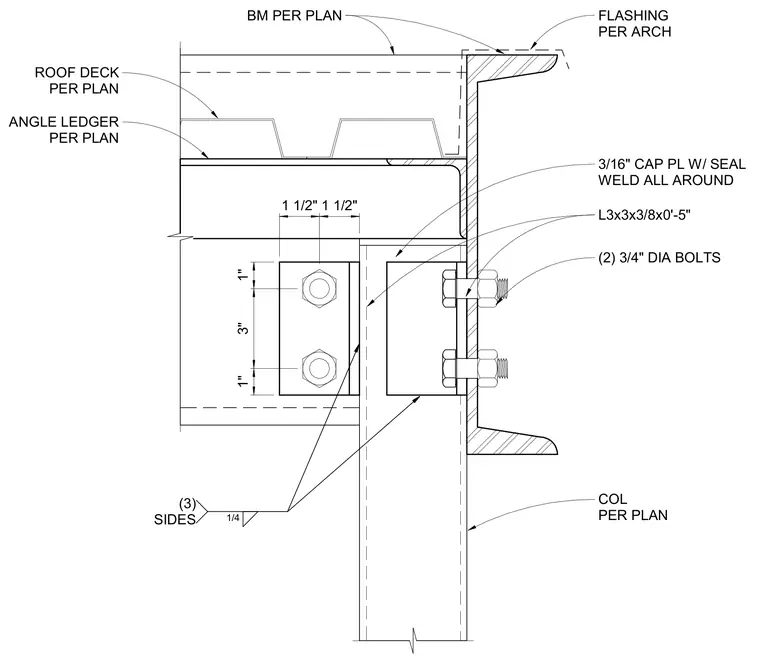

A structural steel column connects to a roof beam assembly using L3x3x3/8 by five-inch angles secured by two three-quarter-inch diameter bolts. A three-sixteenth-inch cap plate is sealed with a weld all around the column top. The beam and column sizes are sized per plan, supporting an angle ledger and roof deck. A one-quarter-inch fillet weld on three sides fastens the angle clip to the column assembly. Flashing is provided per architectural specifications.
L3x3x3/8x0'-5" (2) 3/4" DIA BOLTS COL PER PLAN BM PER PLAN 1/4 (3) SIDES 1 1/2" 1 1/2" 1" 3" 1" 3/16" CAP PL W/ SEAL WELD ALL AROUND FLASHING PER ARCH ANGLE LEDGER PER PLAN ROOF DECK PER PLAN
