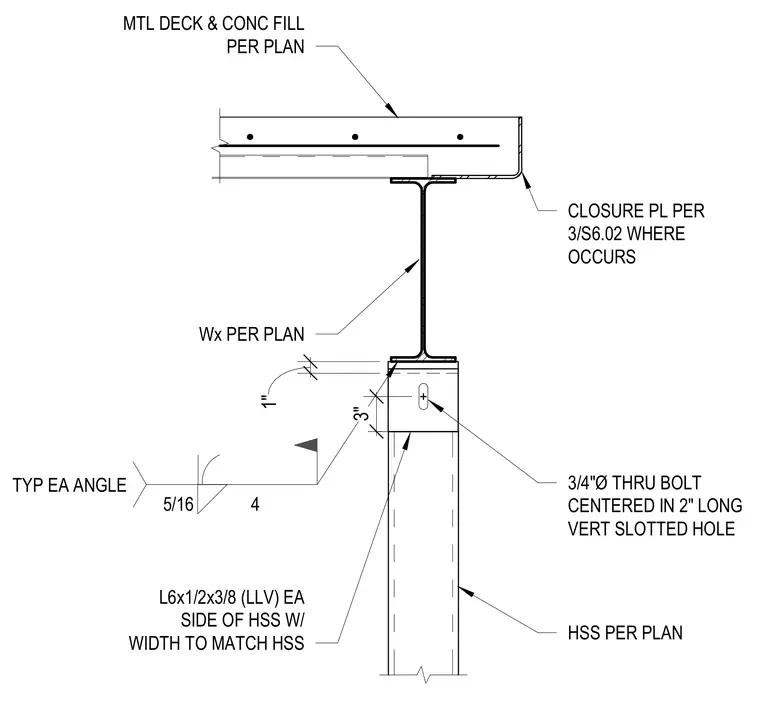

A wide flange beam sized per plan supports a metal deck and concrete fill assembly overhead, bearing on a hollow structural section column sized per plan. Angles measuring L6x1/2x3/8 are attached to each side of the hollow structural section with a width matching the hollow structural section, welded using five-sixteenths inch welds spaced at four inches typical each angle. A three-quarter-inch diameter through bolt is centered in a two-inch long vertical slotted hole in the hollow structural section connection. A closure plate sized per plan is installed at the edge where indicated.
5/16 4 TYP EA ANGLE CLOSURE PL PER 3/S6.02 WHERE OCCURS 3/4"Ø THRU BOLT CENTERED IN 2" LONG VERT SLOTTED HOLE HSS PER PLAN L6x1/2x3/8 (LLV) EA SIDE OF HSS W/ WIDTH TO MATCH HSS Wx PER PLAN MTL DECK & CONC FILL PER PLAN 3" 1"
