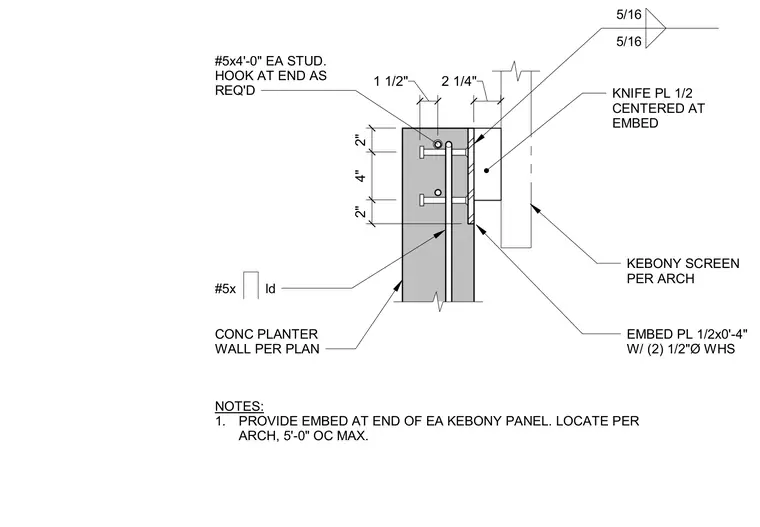

A half-inch thick knife plate centered on an embedded steel plate connects a Kebony screen to a concrete planter wall. The embed plate measures one-half inch by zero feet four inches and is secured with two half-inch diameter welded headed studs. Number five reinforcing dowels measuring four feet zero inches with hooked ends reinforce the wall at each stud. Five-sixteenths inch fillet welds join the knife plate to the embed plate. Embeds are specified at the end of each Kebony panel and located at a maximum of five feet zero inches on center.
KEBONY SCREEN PER ARCH CONC PLANTER WALL PER PLAN 2" 4" 2" EMBED PL 1/2x0'-4" W/ (2) 1/2"Ø WHS KNIFE PL 1/2 CENTERED AT EMBED 5/16 5/16 2 1/4" NOTES: 1. PROVIDE EMBED AT END OF EA KEBONY PANEL. LOCATE PER ARCH, 5'-0" OC MAX. ld #5x #5x4'-0" EA STUD. HOOK AT END AS REQ'D 1 1/2"
