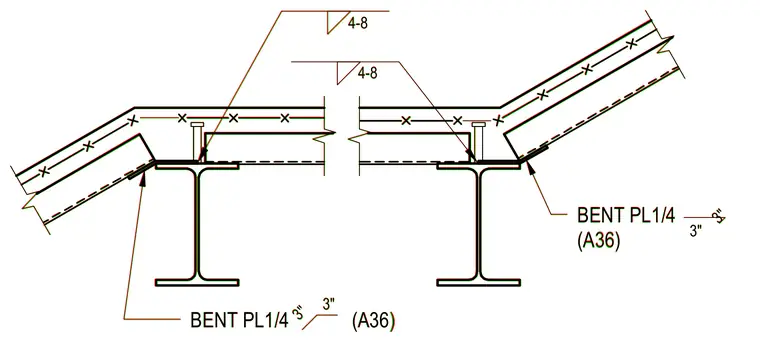

Sloped structural members bear on steel support beams utilizing one-quarter-inch A36 bent steel plates welded in place. The assembly features welded connections and welded shear studs tied into the supporting elements.
BENT PL1/4 (A36) 3" 3" BENT PL1/4 (A36) 3" 3" 4-8 4-8 BENT PL1/4 (A36) 3" 3" BENT PL1/4 (A36) 3" 3" 4-8 4-8
