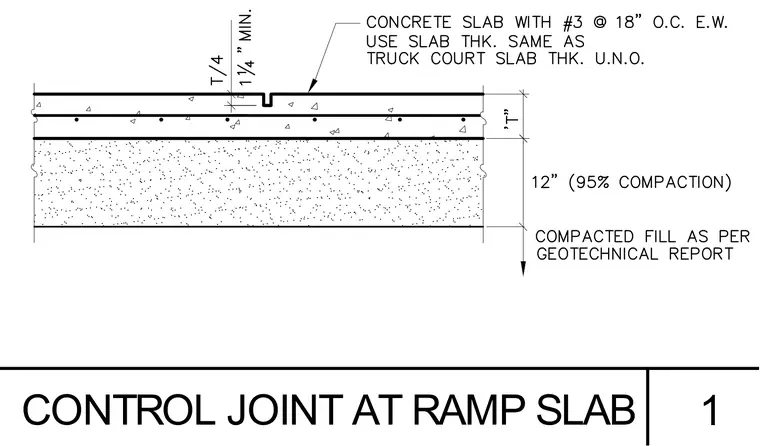

A concrete slab is reinforced with number 3 reinforcing bars spaced at 18 inches on center each way, matching the thickness of the truck court slab unless noted otherwise. The control joint depth is set to one-quarter of the slab thickness with a minimum depth of 1 and 1/4 inches. The concrete slab bears on a 12-inch compacted subgrade layer compacted to 95 percent, resting on compacted fill specified by the geotechnical report.
