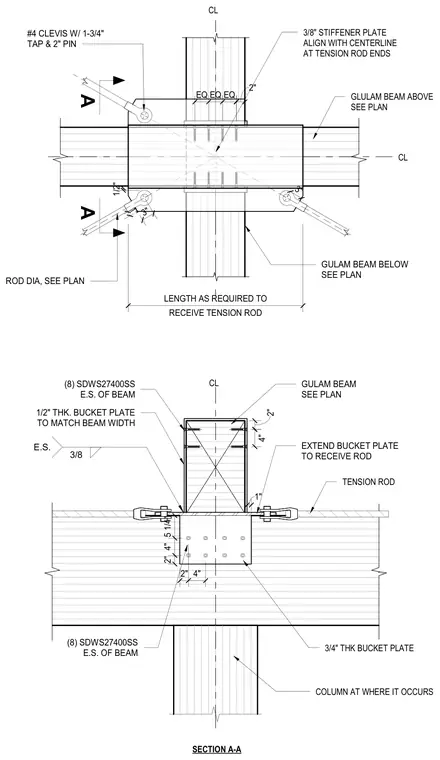

A timber connection between intersecting glulam beams and a vertical glulam column tied with steel tension rods. A half-inch thick bucket plate matching the beam width is secured to the glulam beam with eight SDWS27400SS structural screws on each side. A three-quarter-inch thick bucket plate extends horizontally to receive a number four clevis with a one-and-three-quarter-inch tap and a two-inch pin connected to a tension rod of sized diameter. Three-eighths-inch stiffener plates are aligned with the centerline at the tension rod ends. A three-eighths-inch fillet weld secures the plate assembly on each side as detailed in section A-A.
GULAM BEAM SEE PLAN EXTEND BUCKET PLATE TO RECEIVE ROD (8) SDWS27400SS E.S. OF BEAM 1/2" THK. BUCKET PLATE TO MATCH BEAM WIDTH ROD DIA, SEE PLAN GULAM BEAM BELOW SEE PLAN #4 CLEVIS W/ 1-3/4" TAP & 2" PIN CL A A SECTION A-A CL 2" 4" EQ EQ EQ 3/8 E.S. 1" CL 2" 4" 5 1/4" 2" 4" (8) SDWS27400SS E.S. OF BEAM 3/8" STIFFENER PLATE ALIGN WITH CENTERLINE AT TENSION ROD ENDS RECEIVE TENSION ROD LENGTH AS REQUIRED TO 2" COLUMN AT WHERE IT OCCURS TENSION ROD GLULAM BEAM ABOVE SEE PLAN 3/4" THK BUCKET PLATE 3" 1" 3" 1/2"
