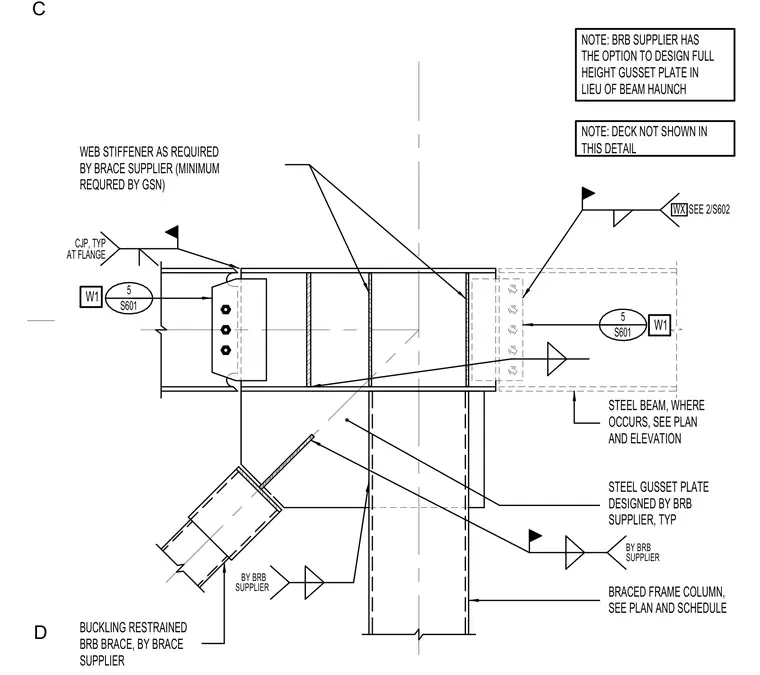

A braced frame connection at a steel roof beam and column intersection utilizes a buckling restrained brace (BRB) supplied by the brace manufacturer. A steel gusset plate designed by the brace supplier connects the diagonal brace to the structural members, with the option for a full-height gusset plate in lieu of a beam haunch. Transverse web stiffeners are provided as required by the brace supplier. Complete joint penetration (CJP) welds are specified typically at the beam and column flanges. The metal deck is omitted from this detail for clarity.
5 S601 5 S601 BRACED FRAME COLUMN, SEE PLAN AND SCHEDULE STEEL BEAM, WHERE BUCKLING RESTRAINED BRB BRACE, BY BRACE SUPPLIER STEEL GUSSET PLATE DESIGNED BY BRB WX SEE 2/S602 BY BRB SUPPLIER NOTE: BRB SUPPLIER HAS THE OPTION TO DESIGN FULL HEIGHT GUSSET PLATE IN LIEU OF BEAM HAUNCH NOTE: DECK NOT SHOWN IN THIS DETAIL BY BRB SUPPLIER CJP, TYP WEB STIFFENER AS REQUIRED BY BRACE SUPPLIER (MINIMUM REQURED BY GSN) AT FLANGE W1 W1 OCCURS, SEE PLAN AND ELEVATION SUPPLIER, TYP D C
