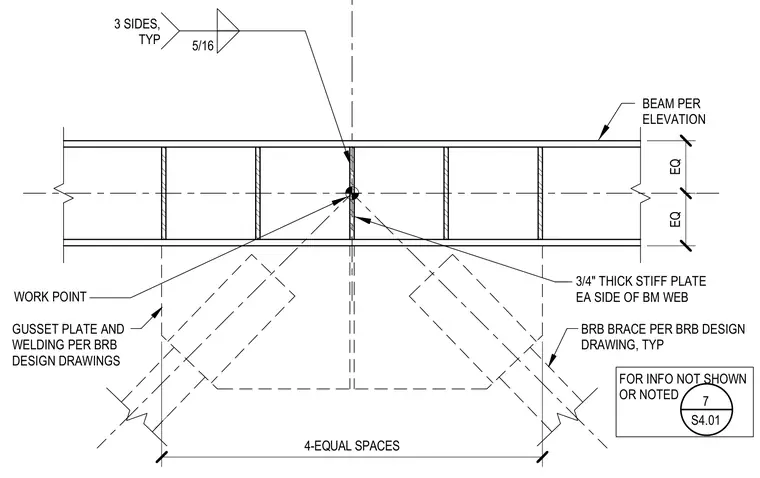

This structural steel connection details a buckling-restrained braced frame junction at a beam per elevation. Three-quarter-inch-thick stiffener plates are welded to each side of the beam web at the work point. A five-sixteenth-inch fillet weld is specified on three sides typically. The gusset plates and associated welding are installed per the buckling-restrained brace design drawings.
3/4" THICK STIFF PLATE EA SIDE OF BM WEB WORK POINT BEAM PER ELEVATION GUSSET PLATE AND WELDING PER BRB DESIGN DRAWINGS 5/16 3 SIDES, TYP FOR INFO NOT SHOWN OR NOTED 7 S4.01 EQ EQ 4-EQUAL SPACES BRB BRACE PER BRB DESIGN DRAWING, TYP
