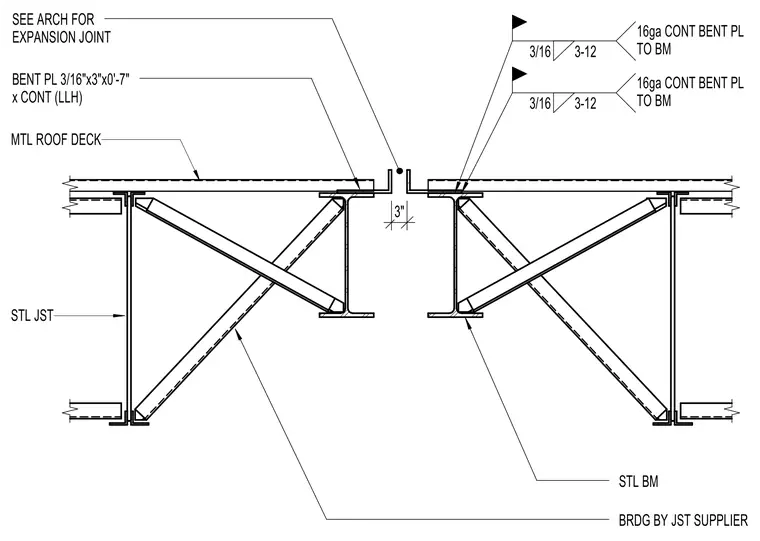

A three-inch expansion joint separates two steel beams carrying metal roof deck and steel joists. Continuous sixteen-gauge bent plates measuring three-sixteenths by three inches by zero-foot-seven inches are welded to the steel beams with three-sixteenth-inch fillet welds at twelve inches on center. Bridging is provided by the joist supplier per architectural expansion joint requirements.
STL BM BRDG BY JST SUPPLIER SEE ARCH FOR EXPANSION JOINT 16ga CONT BENT PL TO BM 3/16 3-12 16ga CONT BENT PL TO BM 3/16 3-12 BENT PL 3/16"x3"x0'-7" x CONT (LLH) MTL ROOF DECK STL JST 3"
