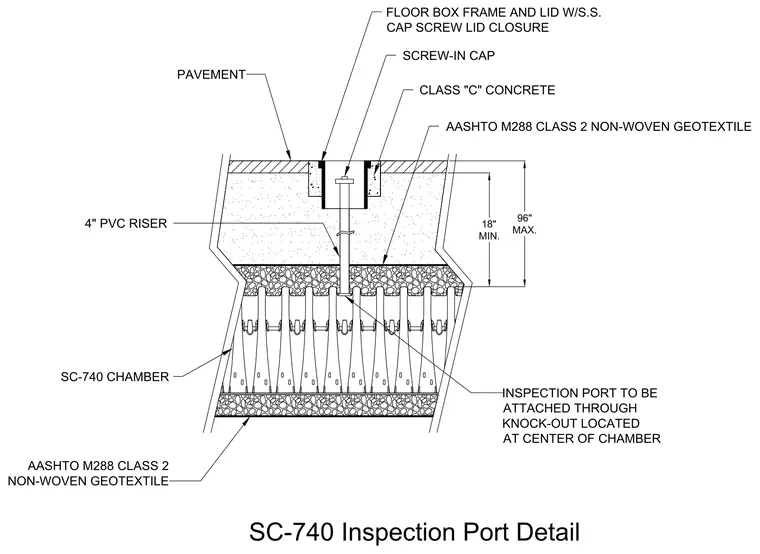

An SC-740 chamber inspection port connects through a knock-out located at the center of the chamber using a four-inch PVC riser extending vertically to a floor box frame and lid with a stainless steel cap screw lid closure. The riser includes a screw-in cap and is surrounded by Class "C" concrete within the pavement section. AASHTO M288 Class 2 non-woven geotextile wraps the aggregate bed above the chamber. The assembly maintains a vertical depth between eighteen inches minimum and ninety-six inches maximum from the top of the chamber to the pavement surface.
18" MIN. 96" MAX. 4" PVC RISER SCREW-IN CAP CLASS "C" CONCRETE SC-740 CHAMBER FLOOR BOX FRAME AND LID W/S.S. CAP SCREW LID CLOSURE AASHTO M288 CLASS 2 NON-WOVEN GEOTEXTILE INSPECTION PORT TO BE ATTACHED THROUGH KNOCK-OUT LOCATED AT CENTER OF CHAMBER AASHTO M288 CLASS 2 NON-WOVEN GEOTEXTILE PAVEMENT SC-740 Inspection Port Detail
