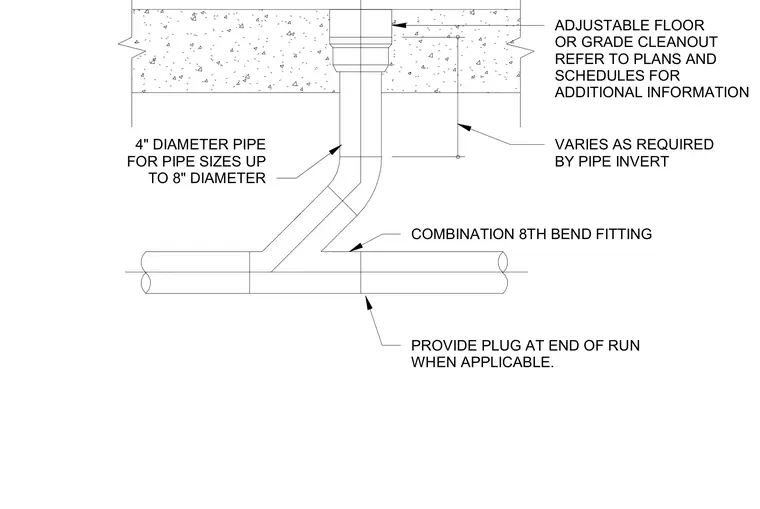

An adjustable floor or grade cleanout is set flush within the concrete floor slab and connects to a four-inch diameter drain pipe. The vertical drop transitions through a combination eighth-bend fitting to meet the horizontal drainage run, with pipe depth varying as required by the pipe invert. A plug is provided at the end of the run when applicable, and additional sizing is coordinated per plumbing plans and schedules.
PROVIDE PLUG AT END OF RUN WHEN APPLICABLE. VARIES AS REQUIRED BY PIPE INVERT ADJUSTABLE FLOOR OR GRADE CLEANOUT REFER TO PLANS AND SCHEDULES FOR ADDITIONAL INFORMATION COMBINATION 8TH BEND FITTING 4" DIAMETER PIPE FOR PIPE SIZES UP TO 8" DIAMETER
