Structural · S-TQMP4

Full Height Interior Metal Stud Framing and Openings

Materials

Steel Timber / Wood Metal (misc.)

Elements

Beams Walls Doors Windows Roofs Floors / Slabs Arches Anchors / Embeds Roof / Floor Openings

Connections

Base Plate / Anchorage Rebar Splice / Development

About this detail

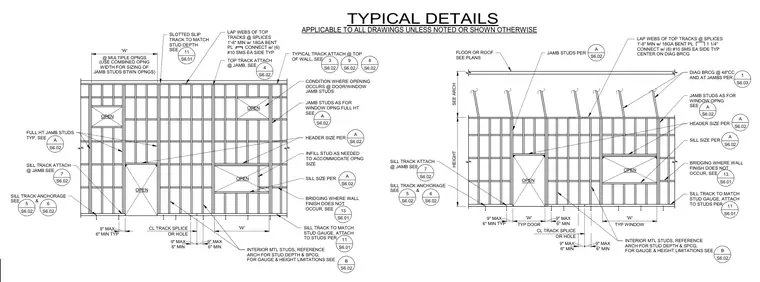

Full-height interior metal stud framing elevations include door and window openings, jamb studs, headers, sill tracks, and diagonal bracing at forty-eight inches on center. Top tracks feature slotted slip tracks matching the stud depth, with web laps at splices measuring one foot eight inches minimum connected using six number ten self-tapping sheet metal screws on each side. Sill track anchorage, bridging where wall finishes do not occur, and track attachments at jambs and tops are included. Interior metal studs are referenced to architectural drawings for depth, spacing, gauge, and height limitations.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
