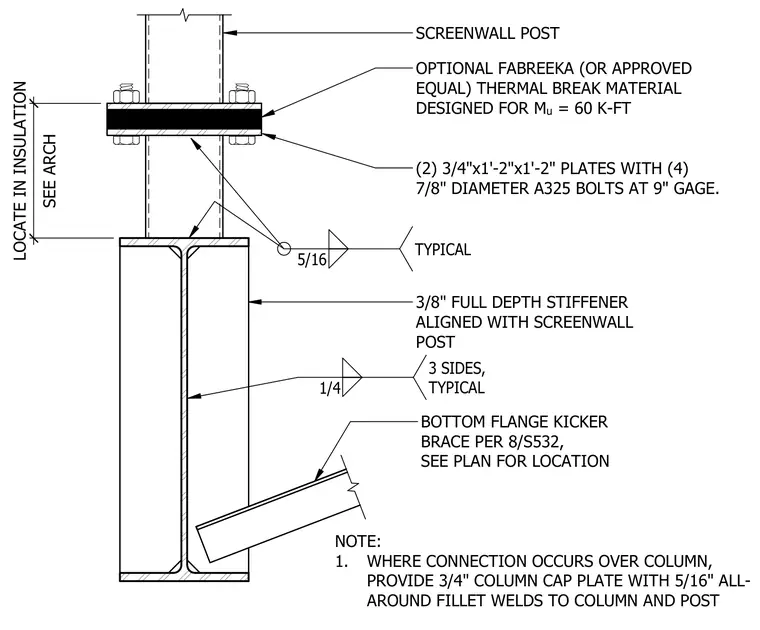

A screenwall post connects to its structural support using a bolted flange assembly with an optional Fabreeka or approved equal thermal break material designed for Mu = 60 k-ft. Two 3/4-inch by 1-foot-2-inch by 1-foot-2-inch plates secure the joint with four 7/8-inch diameter A325 bolts at a 9-inch gage, fastened with 5/16-inch typical fillet welds. A 3/8-inch full-depth stiffener aligns with the screenwall post bottom flange, welded with 1/4-inch fillet welds on three sides typical. A bottom flange kicker brace connects as detailed per plan, and connections occurring over a column require a 3/4-inch column cap plate with 5/16-inch all-around fillet welds to both the column and post.
OPTIONAL FABREEKA (OR APPROVED EQUAL) THERMAL BREAK MATERIAL DESIGNED FOR M u = 60 K-FT 1/4 3 SIDES, TYPICAL 5/16 TYPICAL SEE ARCH LOCATE IN INSULATION SCREENWALL POST (2) 3/4"x1'-2"x1'-2" PLATES WITH (4) 7/8" DIAMETER A325 BOLTS AT 9" GAGE. 3/8" FULL DEPTH STIFFENER ALIGNED WITH SCREENWALL POST BOTTOM FLANGE KICKER BRACE PER , SEE PLAN FOR LOCATION 8/S532 NOTE: 1. WHERE CONNECTION OCCURS OVER COLUMN, PROVIDE 3/4" COLUMN CAP PLATE WITH 5/16" ALL- AROUND FILLET WELDS TO COLUMN AND POST
