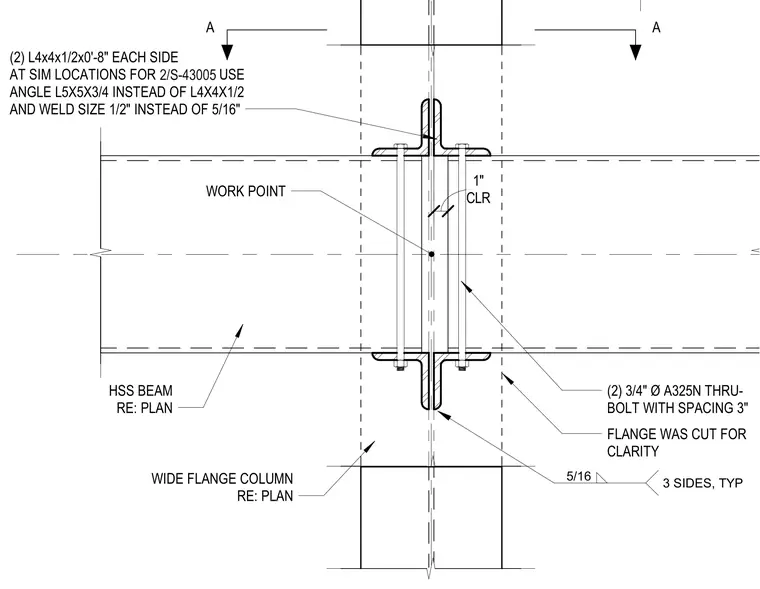

This connection joins a hollow structural section beam to a wide flange column using two L4x4x1/2 inch angles, each eight inches long, positioned on either side of the beam web. The angles are shop-welded to the beam with five-sixteenths inch fillet welds on three sides, though these may be field-welded to facilitate erection. The assembly is secured to the column flange using two three-quarter inch diameter A325N through-bolts spaced at three inches. A one-inch clearance is maintained between the beam end and the column face. For specific locations, the design specifies using L5x5x3/4 inch angles with one-half inch fillet welds instead of the standard configuration.
Text on the drawing
WORK POINT 5/16 3 SIDES, TYP NOTES: • AT LONG SLOTTED CONNECTION LOCATIONS USE ANGLE L6X4X1/2 (LLH) AND REFER TO FOR SLOT LENGTH • SHOP WELD FOR ANGLES CAN BE FIELD WELDED TO ALLOW ERECTION. WIDE FLANGE COLUMN RE: PLAN CLR 1" (2) L4x4x1/2x0'-8" EACH SIDE AT SIM LOCATIONS FOR USE ANGLE L5X5X3/4 INSTEAD OF L4X4X1/2 AND WELD SIZE 1/2" INSTEAD OF 5/16" HSS BEAM RE: PLAN (2) 3/4" Ø A325N THRU- BOLT WITH SPACING 3" A A PLAN A-A TYP. 3" TYP. 2 1/2" EQ EQ FLANGE WAS CUT FOR CLARITY 1/S-43004 2/S-43005 NOTES: FOR HORIZONTAL LONG SLOTTED CONNECTION – SEE DETAIL .
