Structural · S-TQC4F

Buckling-Restrained Braced Frame Protected Zones

Materials

Steel Metal (misc.)

Elements

Roofs Decks Millwork / Casework Connections / Plates

Connections

Deck Attachment

About this detail

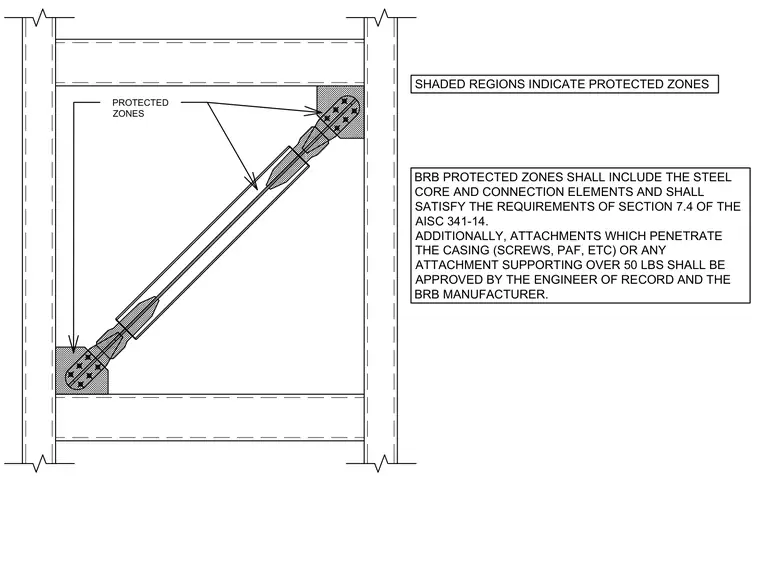

Shaded regions designate protected zones on the buckling-restrained brace, including the steel core and connection elements, in accordance with Section 7.4 of AISC 341-14. Any attachments that penetrate the casing, such as screws or powder-actuated fasteners, or any attachments supporting over fifty pounds, require approval from the engineer of record and the brace manufacturer.
