Structural · S-TQ6XQ

Welded Beam to Column Moment Connection

Materials

weld

Elements

Bracing Connections / Plates

Connections

Braced Frame Connection Welded Connection Bolted Connection

About this detail

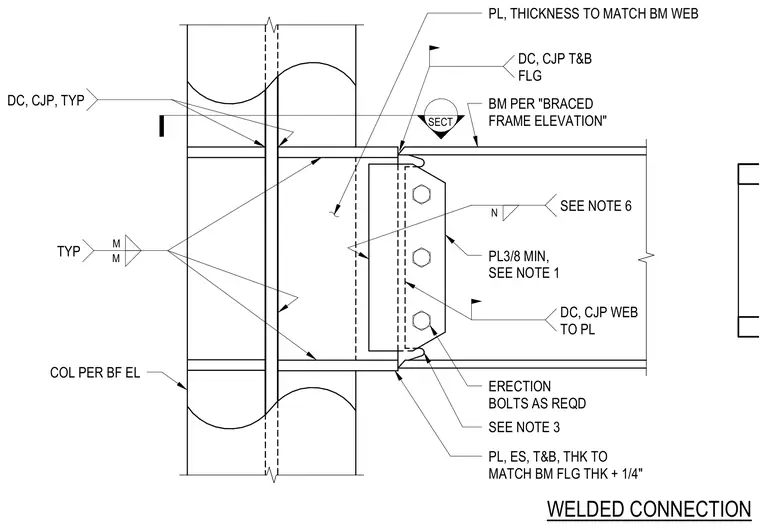

A steel beam connects to a structural column through complete joint penetration welds at the top and bottom flanges. A vertical shear plate with a minimum thickness of 3/8 inch welds to the column flange and secures to the beam web using erection bolts as required. Additional continuity plates match the thickness of the beam flanges plus 1/4 inch, and plate thickness matches the beam web per the braced frame elevation. Complete joint penetration welds tie the web to the plate as specified in the drawing notes.
