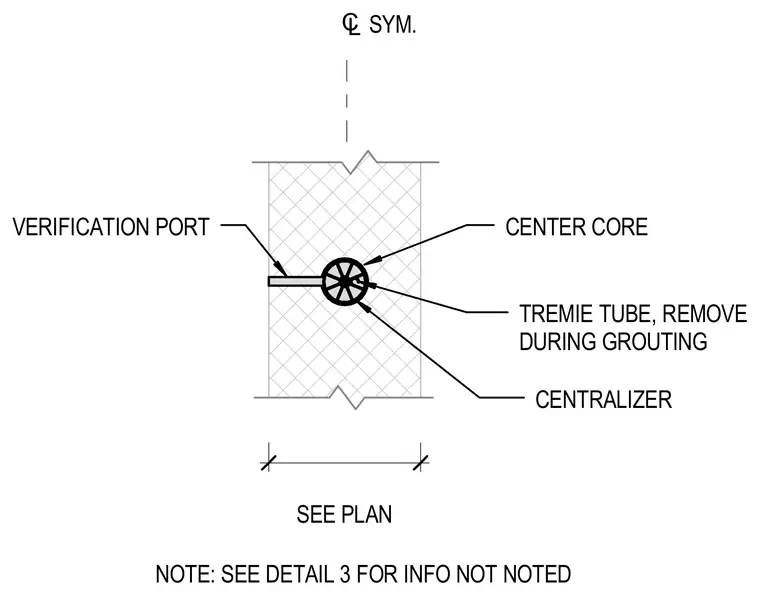

A center core houses a tremie tube that is removed during grouting, centered within the element by a centralizer. A verification port extends outward from the core assembly. A note directs to see the plan and detail 3 for additional information.
CL SYM. NOTE: SEE DETAIL 3 FOR INFO NOT NOTED CENTER CORE TREMIE TUBE, REMOVE DURING GROUTING CENTRALIZER VERIFICATION PORT SEE PLAN
