The mechanical unit hangs from threaded hanging rods coordinated with the mechanical contractor and secured through steel angles. Two L5x3x1/4 angles with long legs vertical support units weighing less than 300 pounds with Unistrut channels. L6x4x5/16 angles spanning ten inches with long legs vertical are welded to the steel joists with typical fillet welds. A 5-1/2 inch by 3 inch spacer plate one-sixteenth inch thicker than the hanging rods is positioned at the third points. The assembly ties back into the steel joist and metal roof deck construction.

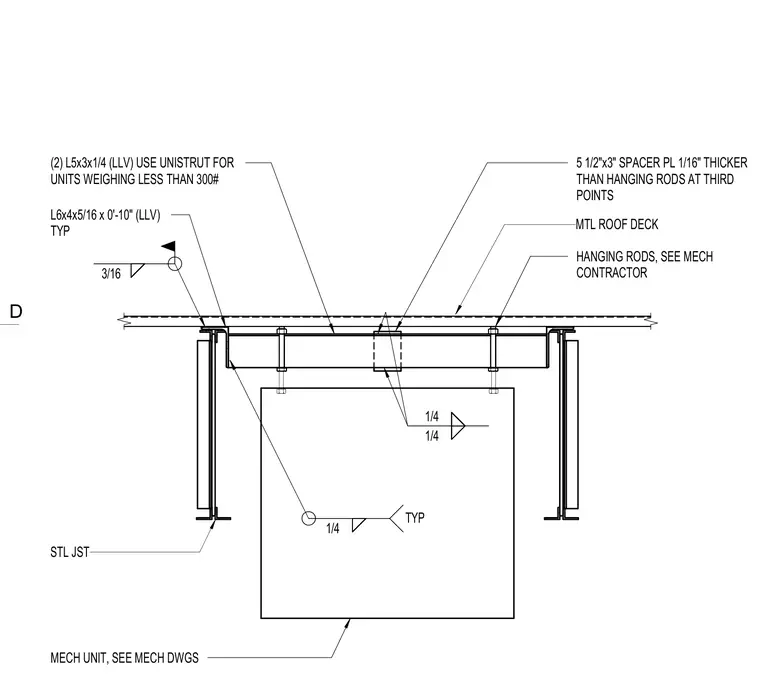

MECH UNIT, SEE MECH DWGS (2) L5x3x1/4 (LLV) USE UNISTRUT FOR UNITS WEIGHING LESS THAN 300# L6x4x5/16 x 0'-10" (LLV) TYP HANGING RODS, SEE MECH CONTRACTOR 5 1/2"x3" SPACER PL 1/16" THICKER THAN HANGING RODS AT THIRD POINTS STL JST MTL ROOF DECK 1/4 TYP 3/16 1/4 1/4 D
