Cold-formed steel framing connections feature heavy-duty and reinforced header assemblies tied into vertical jamb studs using a header clip and self-tapping sheet metal screws. The header track section connects to the heavy-duty header using number 8 sheet metal screws at twelve inches on center on each side. Additional number 10 sheet metal screws secure each stud and each leg at cripple framing locations. Clip angles attach to the jamb and header members using screws specified per the engineering schedule.

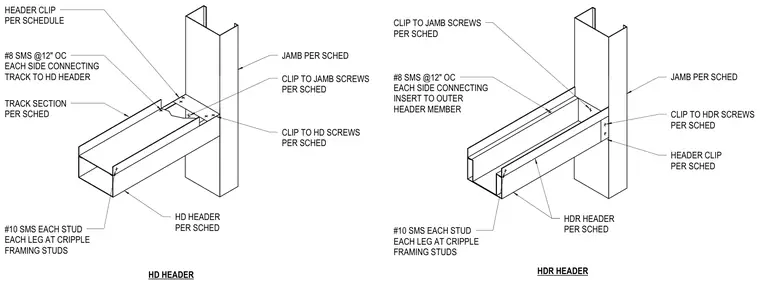

HDR HEADER #10 SMS EACH STUD EACH LEG AT CRIPPLE FRAMING STUDS #8 SMS @12" OC EACH SIDE CONNECTING INSERT TO OUTER HEADER MEMBER CLIP TO JAMB SCREWS PER SCHED JAMB PER SCHED CLIP TO HDR SCREWS PER SCHED HEADER CLIP PER SCHED HDR HEADER PER SCHED HD HEADER #10 SMS EACH STUD EACH LEG AT CRIPPLE FRAMING STUDS #8 SMS @12" OC EACH SIDE CONNECTING TRACK TO HD HEADER HEADER CLIP PER SCHEDULE JAMB PER SCHED CLIP TO JAMB SCREWS PER SCHED CLIP TO HD SCREWS PER SCHED HD HEADER PER SCHED TRACK SECTION PER SCHED
