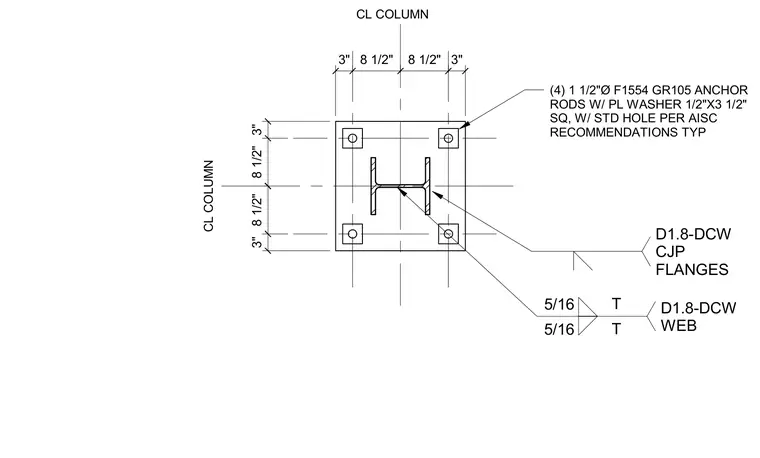

A structural steel column base plate plan connection utilizes four 1 1/2-inch diameter ASTM F1554 Grade 105 anchor rods with 1/2-inch by 3 1/2-inch square plate washers and standard holes per AISC recommendations typically. The steel column flanges are welded with complete joint penetration welds under D1.8-DCW seismic provisions. The column web is connected with 5/16-inch fillet welds on both sides under D1.8-DCW requirements.
8 1/2" 3" 3" 8 1/2" 8 1/2" 3" (4) 1 1/2"Ø F1554 GR105 ANCHOR RODS W/ PL WASHER 1/2"X3 1/2" SQ, W/ STD HOLE PER AISC RECOMMENDATIONS TYP CL COLUMN D1.8-DCW CJP FLANGES 5/16 T 5/16 T D1.8-DCW WEB CL COLUMN 3" 8 1/2"
