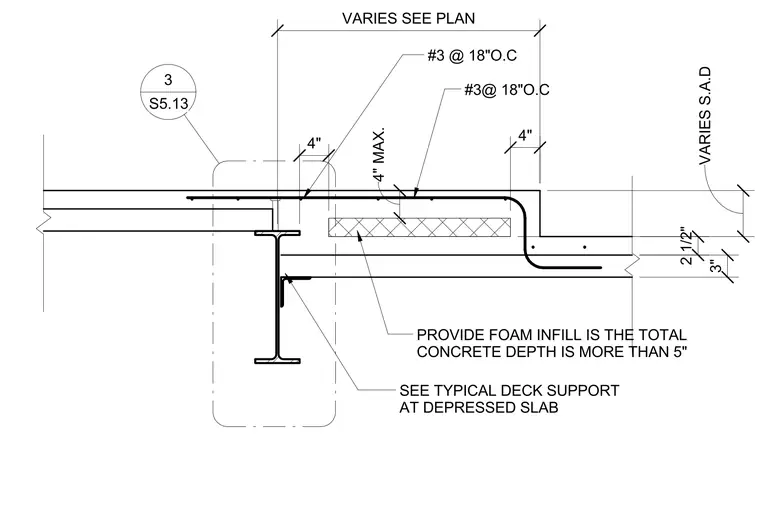

A structural assembly features a depressed concrete slab supported by a steel beam framing configuration. Reinforcement consists of number three rebar spaced at eighteen inches on center within the slab drop. Foam infill is provided when the total concrete depth exceeds five inches. A typical deck support detail is referenced at the depressed slab condition. Slab elevations and dimensions vary as specified on plan.
4" 4" 2 1/2" 3" 4" MAX. SEE TYPICAL DECK SUPPORT AT DEPRESSED SLAB #3@ 18"O.C #3 @ 18"O.C PROVIDE FOAM INFILL IS THE TOTAL CONCRETE DEPTH IS MORE THAN 5" VARIES SEE PLAN VARIES S.A.D S5.13 3
