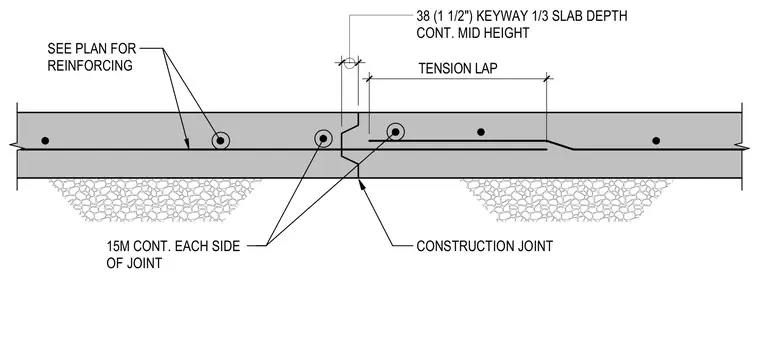

This concrete slab on grade construction joint features a thirty-eight millimeter, one-and-a-half-inch keyway sized to one-third of the slab depth positioned continuously at mid-height. Continuous fifteen-meter reinforcing bars run on each side of the joint, supplemented by a tension lap as sized per plan for reinforcing. The assembly rests on a prepared sub-base.
38 (1 1/2") KEYWAY 1/3 SLAB DEPTH CONT. MID HEIGHT 15M CONT. EACH SIDE OF JOINT CONSTRUCTION JOINT SEE PLAN FOR REINFORCING TENSION LAP
