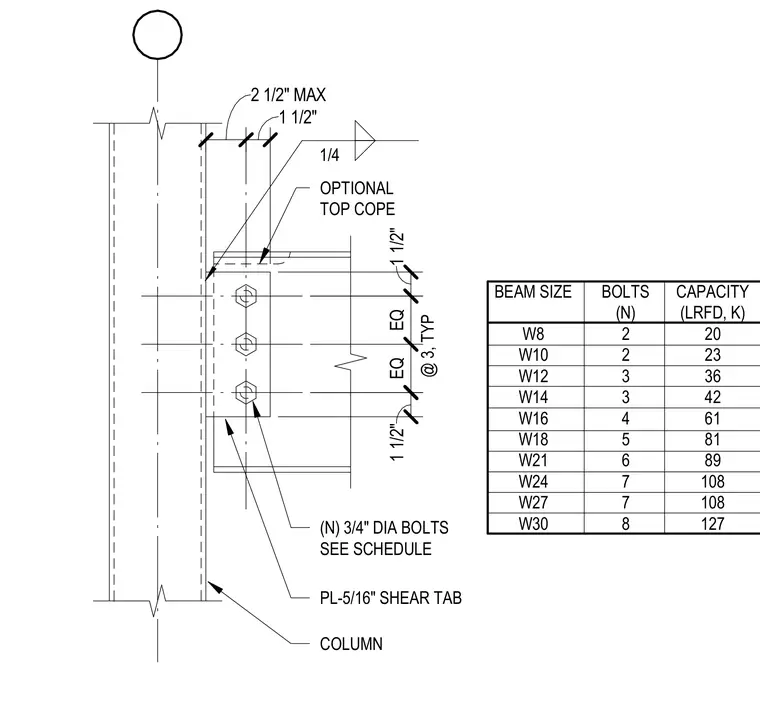

A wide flange steel beam connects to a hollow structural section steel column using a five-sixteenth inch thick single plate shear tab. The shear tab is welded to the column face and bolted to the beam web with three three-quarter inch diameter bolts spaced at three inches typical. An optional top cope is detailed on the beam flange with dimensions for maximum clearance against the column face. A companion schedule provides the required number of bolts and LRFD capacities for beam sizes ranging from W8 to W30.
BEAM SIZE W8 W10 W12 W14 W16 W18 W21 W24 W27 W30 BOLTS (N) 2 2 3 3 4 5 6 7 7 8 CAPACITY (LRFD, K) 20 23 36 42 61 81 89 108 108 127 1/4 2 1/2" MAX 1 1/2" COLUMN (N) 3/4" DIA BOLTS SEE SCHEDULE PL-5/16" SHEAR TAB EQ EQ OPTIONAL TOP COPE 1 1/2" 1 1/2" @ 3, TYP
