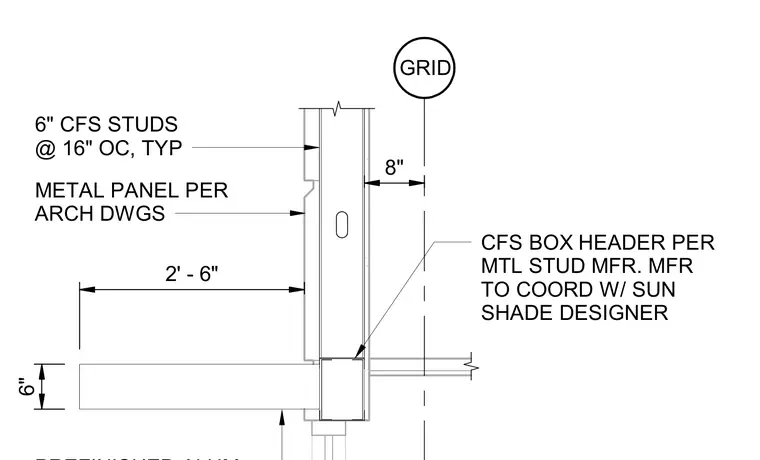

Six-inch cold-formed steel studs spaced at sixteen inches on center support exterior metal panels per architectural drawings. A six-inch cold-formed steel box header is installed per the metal stud manufacturer, positioned eight inches from the structural grid line. The manufacturer coordinates directly with the sun shade designer.
METAL PANEL PER ARCH DWGS 6" CFS STUDS @ 16" OC, TYP GRID 8" 2' - 6" 6" CFS BOX HEADER PER MTL STUD MFR. MFR TO COORD W/ SUN SHADE DESIGNER
