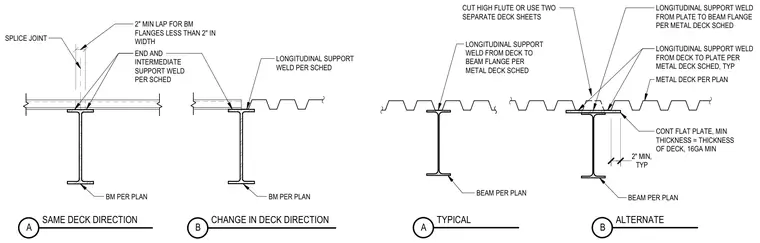

Metal deck running parallel to a supporting steel beam is secured with longitudinal support welds per the metal deck schedule. A continuous flat plate with a minimum thickness matching the deck and a minimum of sixteen gauge is used at alternate conditions, with a two inch minimum dimension. Splice joints require a two inch minimum lap when beam flanges are less than two inches in width. High flutes are cut or two separate deck sheets are utilized as needed.
LONGITUDINAL SUPPORT WELD PER SCHED BM PER PLAN 2" MIN LAP FOR BM FLANGES LESS THAN 2" IN WIDTH END AND INTERMEDIATE SUPPORT WELD PER SCHED SPLICE JOINT BM PER PLAN CONT FLAT PLATE, MIN THICKNESS = THICKNESS OF DECK, 16GA MIN METAL DECK PER PLAN CUT HIGH FLUTE OR USE TWO SEPARATE DECK SHEETS LONGITUDINAL SUPPORT WELD FROM PLATE TO BEAM FLANGE PER METAL DECK SCHED LONGITUDINAL SUPPORT WELD FROM DECK TO PLATE PER METAL DECK SCHED, TYP BEAM PER PLAN TYP 2" MIN, BEAM PER PLAN TYPICAL A LONGITUDINAL SUPPORT WELD FROM DECK TO BEAM FLANGE PER METAL DECK SCHED ALTERNATE B SAME DECK DIRECTION A CHANGE IN DECK DIRECTION B
