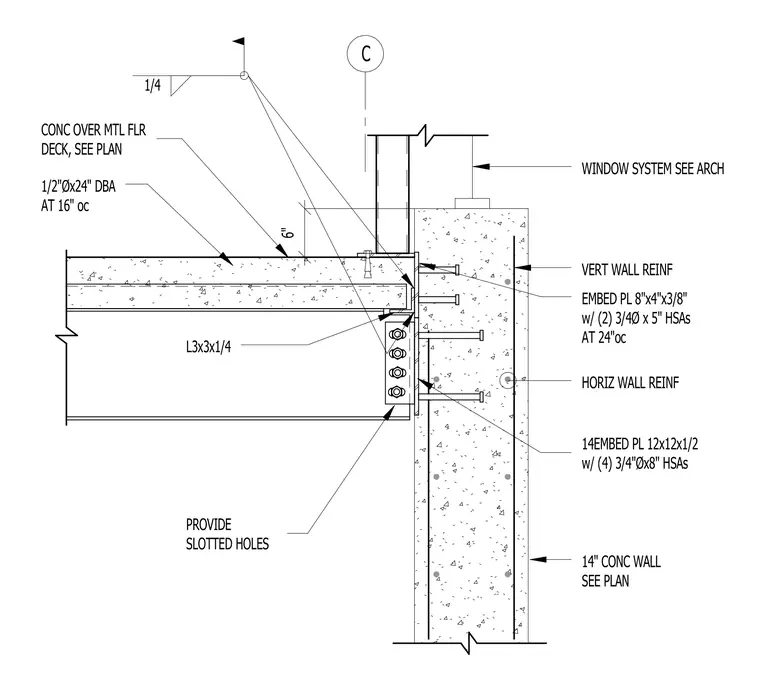

The concrete over metal floor deck is supported by an L3x3x1/4 angle that ties back to a 12x12x1/2 embed plate with four 3/4-inch diameter by 8-inch high-strength anchors at 24 inches on center featuring slotted holes. An additional 8x4x3/8 embed plate with two 3/4-inch diameter by 5-inch high-strength anchors at 24 inches on center secures the assembly. The 14-inch concrete wall contains vertical and horizontal reinforcing steel. A 1/2-inch diameter by 24-inch deformed bar anchor at 16 inches on center anchors the slab. The window system interface is coordinated per the architectural drawings.
1/2"Øx24" DBA AT 16" oc L3x3x1/4 EMBED PL 8"x4"x3/8" w/ (2) 3/4Ø x 5" HSAs AT 24"oc CONC OVER MTL FLR DECK, SEE PLAN 14" CONC WALL SEE PLAN C 1/4 HORIZ WALL REINF VERT WALL REINF WINDOW SYSTEM SEE ARCH 6" 14EMBED PL 12x12x1/2 w/ (4) 3/4"Øx8" HSAs PROVIDE SLOTTED HOLES
