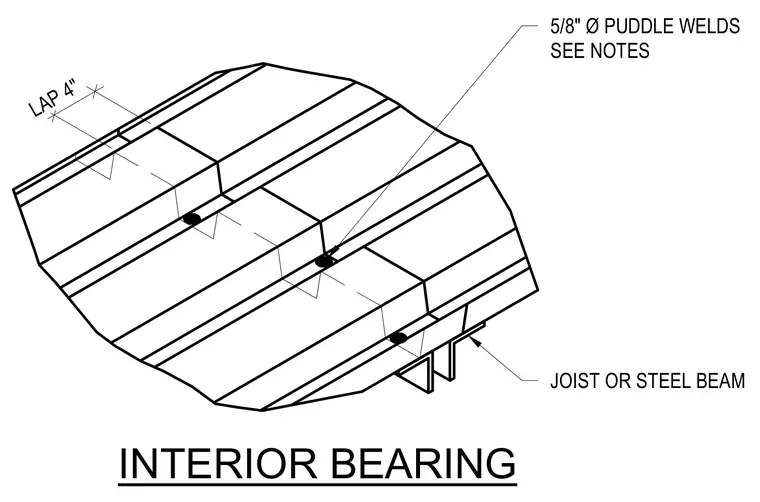

Metal deck bears across an interior joist or steel beam with a four-inch lap at the sheet ends. Five-eighths-inch diameter puddle welds secure the deck to the structural support per structural notes.
